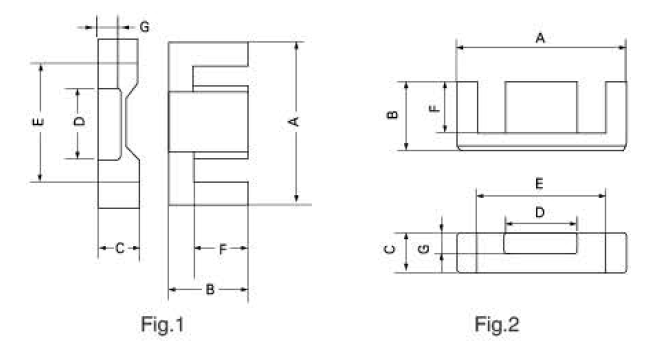

型號(hào) Type | 圖例 | 尺寸 Dimension | 重量 g | ||||||
A | B | C | D | E | F | G | |||
EFD1113 | 1 | 11.1±0.15 | 6.7±0.10 | 4.0±0.10 | 4.1±0.10 | 8.1±0.15 | 4.90±0.10 | 2.05±0.10 | 2.1 |
EFD1515 | 1 | 15.5±0.35 | 7.6±0.25 | 4.8±0.20 | 5.2±0.20 | 11.0min | 5.55±0.20 | 2.20±0.15 | 3.2 |
EFD20-6.8 | 1 | 20.5±0.60 | 10.0±0.15 | 6.8±0.30 | 8.9±0.20 | 15.4±0.50 | 7.70±0.20 | 3.60±0.15 | 8.5 |
EFD20D | 1 | 20.6±0.40 | 10.1±0.25 | 6.6±0.30 | 8.9±0.20 | 16.0 min | 7.80±0.25 | 3.60±0.15 | 8.5 |
EFD2027 | 2 | 20.0±0.55 | 13.8±0.30 | 7.8±0.25 | 8.9±0.25 | .9±0.40 | 10.50±0.25 | 3.70±0.15 | 11.9 |
EFD2525 | 1 | 25.6±0.60 | 12.6±0.30 | 9.1±0.40 | 11.3±0.20 | 19.3±0.60 | 9.50±0.30 | 5.15±0.20 | 18.3 |
EFD2532 | 1 | 25.6±0.60 | 16.0±0.20 | 9.1±0.40 | 11.3±0.20 | 19.3±0.60 | 12.80±0.20 | 5.15±0.20 | 21.2 |
EFD3030 | 1 | 30.5±0.50 | 15.2±0.20 | 9.1±0.20 | 14.6±0.25 | 23.0min | 11.40±0.15 | 4.90±0.15 | 25.6 |
EFD3130 | 1 | 31.4±0.50 | 15.3±0.20 | 9.2±0.30 | 14.6±0.25 | 23.5min | 11.50±0.20 | 4.70±0.15 | 25.8 |
EFD31-1 | 1 | 31.7±0.60 | 15.3±0.20 | 9.2±0.30 | 14.6±0.25 | 24.1min | 11.50±0.20 | 4.70±0.15 | 26.0 |
EFD3135 | 2 | 31.8±0.80 | 17.4±0.25 | 7.8±0.30 | 11.7±0.30 | 24.1±0.60 | 13.10±0.30 | 4.00±0.20 | 25.6 |
EFD3334 | 1 | 33.6±0.50 | 17.6±0.20 | 9.1±0.20 | 14.6±0.20 | 25.8±0.40 | 13.7±0.20 | 4.90±0.20 | 31.0 |
EFD34-1 | 2 | 33.7±0.60 | 23.5±0.20 | 5.0±0.15 | 17.0±0.20 | 23.5min | 18.00±0.15 | 3.00±0.10 | 37.0 |
EFD3444 | 2 | 33.7±0.60 | 22.3±0.30 | 5.4±0.30 | 17.0±0.20 | 23.5min | 16.80±0.30 | 3.50±0.20 | 35.5 |
EFD3634 | 2 | 36.5±0.70 | 16.9±0.30 | 11.5±0.40 | 15.3±0.30 | 26.6min | 11.70±0.20 | 7.50±0.20 | 50.2 |
EFD3835 | 2 | 37.8±0.60 | 17.7±0.20 | 7.6±0.20 | 18.7±0.30 | 29.7±0.60 | 13.00±0.20 | 3.35±0.20 | 35.0 |
EFD4138.5 | 2 | 41.0±0.80 | 19.2±0.3 | 11.8±0.30 | 16.6±0.40 | 31.4±0.70 | 14.5±0.2 | 6.70±0.25 | 58.2 |
EFD4549 | 2 | 45.7±0.60 | 24.5±0.20 | 5.95±0.25 | 24.0±0.40 | 33.0min | 17.80±0.30 | 3.00±0.20 | 47.0 |
EFD4649 | 2 | 45.5±0.80 | 24.3±0.20 | 6.5±0.20 | 22.75±0.3 | 33.4±0.60 | 17.70±0.20 | 3.30±0.20 | 55.4 |
EFD5050 | 2 | 50.5±0.70 | 25.6±0.30 | 9.0±0.30 | 23.5±0.30 | 38.0±0.40 | 18.50±0.30 | 5.00±0.30 | 84.9 |
型號(hào) Type | 有效參數(shù) | AL值 AL(nH/N2) | |||
C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | HCP4 | |
EFD1113 | 3.030 | 31.10 | 10.25 | 363.0 | 900±25% |
EFD1515 | 3.180 | 36.45 | 11.44 | 641.8 | 900±25% |
EFD20-6.8 | 0.830 | 46.69 | 28.50 | 1460.0 | 1800±25% |
EFD20D | 1.860 | 48.68 | 26.10 | 1270.0 | 1370±25% |
EFD2027 | 1.700 | 59.23 | 34.74 | 2057.9 | 1150±25% |
EFD2525 | 1.310 | 57.00 | 57.60 | 3310.0 | 2000±25% |
EFD2532 | 1.310 | 76.00 | 57.60 | 4150.0 | 1800±25% |
EFD3030 | 1.190 | 74.36 | 62.50 | 4848.1 | 2300±25% |
EFD3130 | 1.190 | 74.36 | 62.50 | 4848.1 | 2300±25% |
EFD31-1 | 1.120 | 70.99 | 63.46 | 4505.0 | 2300±25% |
EFD3135 | 1.780 | 83.40 | 46.80 | 4851.0 | 1900±25% |
EFD3334 | 1.240 | 80.45 | 64.58 | 5195.6 | 1880±25% |
EFD34-1 | 2.130 | 108.75 | 51.00 | 5525.5 | 1500±25% |
EFD3444 | 1.740 | 103.95 | 59.50 | 5851.7 | 1800±25% |
EFD3634 | 1.937 | 76.09 | 117.23 | 8920.0 | 3500±25% |
EFD3835 | 1.440 | 90.30 | 62.60 | 5929.0 | 2050±25% |
EFD4138.5 | 0.820 | 91.60 | 112.00 | 10259.0 | 4100±25% |
EFD4549 | 0.985 | 68.00 | 69.00 | 7700.0 | 2050±25% |
EFD4649 | 1.350 | 106.00 | 78.50 | 8321.0 | 2000±25% |
EFD5050 | 0.990 | 113.70 | 114.30 | 12996.0 | 2400±25% |
