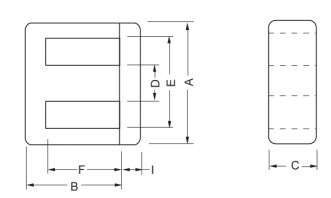

型號 | 尺寸 | 重量 | ||||||
A | B | C | D | E min | F | I | ||
EI19 | 19.2±0.5 | 13.7±0.3 | 4.90±0.3 | 4.70±0.3 | 14.00 | 11.50±0.3 | 2.40±0.2 | 4.7 |
EI22 | 22.0±0.5 | 14.9±0.3 | 5.70±0.3 | 5.70±0.3 | 15.80 | 11.00±0.3 | 3.60±0.3 | 9.2 |
EI25 | 25.4±0.5 | 16.3±0.4 | 6.30±0.3 | 6.30±0.3 | 18.60 | 13.30±0.4 | 3.00±0.3 | 10.8 |
EI28 | 28.1±0.5 | 17.1±0.3 | 10.40±0.3 | 7.10±0.3 | 18.50 | 12.80±0.4 | 3.50±0.3 | 23.4 |
EI30 | 30.6±0.4 | 21.5±0.3 | 10.65±0.3 | 10.65±0.3 | 20.25 | 16.50±0.3 | 5.50±0.2 | 38.1 |
EI33 | 33.2±0.6 | 24.3±0.4 | 12.70±0.3 | 9.50±0.5 | 23.20 | 19.40±0.4 | 4.75±0.3 | 41.5 |
EI40 | 40.0±0.7 | 27.0±0.5 | 11.60±0.4 | 11.60±0.4 | 27.20 | 21.25±0.3 | 6.50±0.3 | 62.4 |
EI40D | 40.0±0.7 | 27.4±0.3 | 11.65±0.4 | 11.65±0.4 | 28.00 | 20.60±0.3 | 7.50±0.3 | 63.2 |
型號 | 有效參數(shù) | AL值 AL(nH/N2) | ||||
C1 | Le | Ae | Ve | HCP4A | HCP4 | |
EI19 | 1.50 | 39.10 | 26.30 | 1029 | 1200±25% | |
EI22 | 1.32 | 42.90 | 32.49 | 1686 | 2160±25% | 1790±25% |
EI25 | 1.07 | 49.10 | 46.00 | 2270 | 2000±25% | |
EI28 | 0.57 | 48.60 | 85.10 | 4139 | 4600±25% | 3800±25% |
EI30 | 0.54 | 59.64 | 110.12 | 6568 | 4000±25% | |
EI33 | 0.57 | 66.90 | 118.10 | 7909 | 5100±25% | 4100±25% |
EI40 | 0.55 | 76.80 | 140.00 | 10750 | 5500±25% | 4400±25% |
EI40D | 0.53 | 77.60 | 147.30 | 11420 | 5400±25% | |
