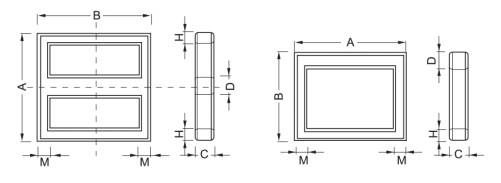

型號 Type | 尺寸 Dimension(mm) | 重量 （g） | |||||
A | B | C | D | H | M | ||
ET20 | 20.10±0.50 | 20.10±0.50 | 4.4±0.3 | 3.9±0.3 | 2.0±0.20 | 2.0±0.20 | 4.3 |
ET20-1 | 20.10±0.50 | 20.10±0.50 | 5.4±0.3 | 4.0±0.2 | 2.0±0.20 | 2.0±0.20 | 5.5 |
ET22 | 23.50±0.50 | 22.00±0.30 | 3.5±0.2 | 3.8±0.1 | 2.2±0.15 | 2.2±0.15 | 4.8 |
ET24 | 24.20±0.50 | 24.20±0.50 | 4.0±0.3 | 4.0±0.3 | 2.4±0.15 | 2.4±0.15 | 6.1 |
ET25 | 24.60±0.30 | 24.80±0.30 | 7.0±0.2 | 6.9±0.2 | 2.5±0.15 | 2.5±0.15 | 13.0 |
ET26 | 26.00±0.40 | 26.00±0.40 | 4.5±0.3 | 4.5±0.3 | 2.5±0.15 | 2.5±0.15 | 6.5 |
ET28 | 28.45±0.55 | 28.45±0.55 | 5.0±0.3 | 5.0±0.3 | 2.9±0.20 | 2.9±0.20 | 10.0 |
ET29 | 29.00±0.30 | 30.00±0.30 | 5.0±0.3 | 5.0±0.3 | 2.9±0.20 | 2.9±0.20 | 10.5 |
ET35 | 35.30±0.60 | 35.30±0.60 | 7.5±0.3 | 7.3±0.3 | 4.0±0.20 | 4.0±0.20 | 25.1 |
型號 Type | 有效參數(shù) Effective parameter | AL值 AL（nH/N2） | ||||||
C1 (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | HC-5 | HC-7 | HC-10 | HC-12 | |
ET20 | 2.96 | 52.10 | 17.6 | 917 | 2000±25% | 2700±25% | 3600±25% | 4400±25% |
ET20-1 | 2.34 | 50.58 | 21.6 | 1092 | 5500±25% | |||
ET22 | 5.00 | 66.60 | 13.5 | 899 | 1700±25% | 2000±25% | 3000±25% | 3500±25% |
ET24 | 3.42 | 61.00 | 17.8 | 1090 | 2000±25% | 2700±25% | 3600±25% | 4400±25% |
ET25 | 3.24 | 63.00 | 20.0 | 1400 | 2500±25% | 3000±25% | 4000±25% | 4600±25% |
ET26 | 3.12 | 66.00 | 21.1 | 1395 | 2200±25% | 2800±25% | 3600±25% | 4000±25% |
ET28 | 2.61 | 71.40 | 27.4 | 1950 | 2600±25% | 3600±25% | 4500±25% | 5400±25% |
ET29 | 2.67 | 74.50 | 27.9 | 2070 | 2600±25% | 3600±25% | 4500±25% | 5400±25% |
ET35 | 1.48 | 86.70 | 58.6 | 5080 | 4000±25% | 5000±25% | 6400±25% | 8500±25% |
型號 Type | 尺寸 Dimension(mm) | 重量 （g） | |||||
A | B | C | D | H | M | ||
FT1412 | 14.0±0.4 | 12.0±0.4 | 5.0±0.20 | 3.0±0.20 | 3.0±0.20 | 3.0±0.20 | 3.0 |
FT16 | 15.6±0.2 | 13.4±0.2 | 7.0±0.20 | 2.8±0.15 | 2.8±0.15 | 2.8±0.15 | 4.5 |
FT1715 | 17.8±0.2 | 15.0±0.2 | 3.6±0.20 | 4.8±0.20 | 3.0±0.20 | 3.8±0.20 | 3.5 |
FT1718 | 17.5±0.4 | 15.0±0.3 | 3.7±0.20 | 4.7±0.20 | 3.7±0.20 | 3.0±0.20 | 3.5 |
FT2014 | 20.6±0.3 | 14.2±0.3 | 4.3±0.30 | 4.2±0.20 | 2.4±0.20 | 2.4±0.20 | 3.8 |
FT2017 | 20.0±0.4 | 17.0±0.4 | 6.5±0.40 | 4.0±0.20 | 4.0±0.20 | 4.0±0.20 | 7.7 |
FT2116 | 21.5±0.2 | 15.8±0.3 | 4.6±0.20 | 4.4±0.20 | 4.4±0.20 | 3.1±0.15 | 5.0 |
FT2318 | 23.0MAX | 18.8±0.3 | 7.0±0.20 | 4.0±0.20 | 4.0±0.20 | 4.0±0.20 | 8.5 |
FT30 | 30.0±0.4 | 19.8±0.3 | 6.4±0.25 | 6.4±0.15 | 4.2±0.20 | 3.6±0.20 | 12.0 |
型號 Type | 有效參數(shù) Effective parameter | AL值 AL（nH/N2） | ||||||
C1 (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | HC-5 | HC-7 | HC-10 | HC-12 | |
FT1412 | 2.49 | 37.4 | 15.00 | 561 | 5000±25% | |||
FT16 | 2.24 | 44.0 | 19.60 | 917 | 3000±25% | 4000±25% | 5600±25% | 6700±25% |
FT1715 | 4.29 | 46.4 | 10.80 | 697 | 1950±25% | 2930±25% | 3900±25% | 4600±25% |
FT1718 | 3.47 | 47.6 | 13.69 | 690 | 1950±25% | 2930±25% | 3900±25% | 4600±25% |
FT2014 | 5.40 | 55.8 | 10.32 | 742 | 1600±25% | 2100±25% | 2900±25% | 3300±25% |
FT2017 | 2.09 | 54.5 | 26.00 | 1418 | 6500±25% | |||
FT2116 | 2.78 | 56.5 | 20.24 | 1070 | 2260±25% | 3390±25% | 4520±25% | 5400±25% |
FT2318 | 2.21 | 63.5 | 28.88 | 1833 | 3200±25% | |||
FT30 | 2.91 | 78.2 | 26.90 | 2459 | 2500±25% | 3150±25% | 4500±30% | 5400±25% |
