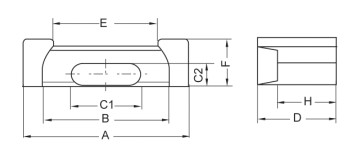

型號(hào) | 尺寸 | |||||||
A | Bmin | C1 | C2 | D | Emin | F | H | |
EPC13 | 13.3±0.30 | 10.5 | 5.5±0.2 | 2.00±0.2 | 6.8±0.2 | 8.3 | 4.6±0.2 | 4.75±0.2 |
EPC14 | 13.5±0.30 | 11.0 | 5.5±0.2 | 2.00±0.2 | 6.8±0.2 | 9.0 | 4.6±0.2 | 4.75±0.2 |
EPC27 | 27.1±0.50 | 21.6 | 13.0±0.3 | 4.00±0.1 | 16.0±0.2 | 18.5 | 8.0±0.2 | 12.00±0.3 |
EPC39 | 39.6±0.50 | 31.0 | 17.8±0.2 | 9.7±0.2 | 19.7±0.2 | 25.0 | 15.7±3 | 14.2±0.2 |
EPC42 | 42.0±0.80 | 33.5 | 16.7±0.3 | 7.30±0.3 | 21.6±0.3 | 26.2 | 14.9±0.3 | 16.20±0.3 |
EPC46 | 46.5±0.80 | 36.20 | 20.85±0.3 | 11.90±0.3 | 22.50±0.3 | 29.1 | 19.4±0.3 | 15.5±0.3 |
型號(hào) | 有效參數(shù) | 重量(g) | AL值 AL(nH/N2) | ||||
C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | HCP4 | HC-10 | ||
EPC13 | 2.46 | 30.6 | 12.5 | 382 | 2.5 | 3000±25% | |
EPC14 | 2.46 | 30.6 | 12.5 | 382 | 2.5 | 870±25% | |
EPC27 | 1.34 | 73.1 | 54.6 | 3995 | 19.5 | 1540±25% | |
EPC39 | 0.58 | 90.9 | 155.7 | 14158 | 79.0 | 5000±30% | |
EPC42 | 0.92 | 102.0 | 110.0 | 16048 | 76.0 | 2800±25% | |
EPC46 | 0.52 | 115.2 | 217.6 | 26806 | 134.0 | 5500±25% | |
