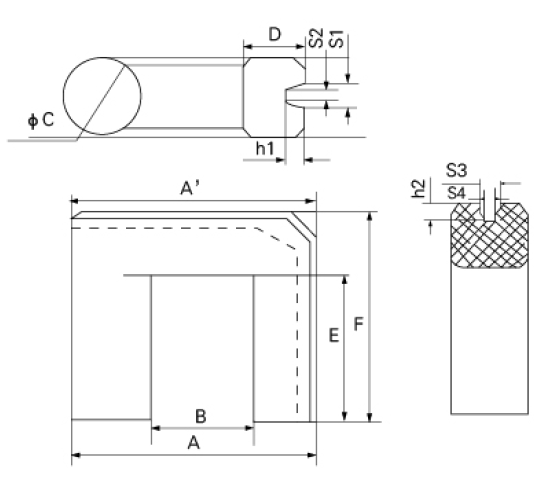

型號(hào)Type | 尺寸(mm) | 重量(g) | |||||||
A | B min | C | D | E | F | S3*S4*h2 | S1*S2*h1 | ||
U12 | 35.5±0.50 | 12.5 | 11.9±0.20 | 9.5±0.30 | 21.3±0.20 | 31.30±0.20 | 3.2*2.0*2.0 | 3.0*2.0*2.0 | 87.1 |
U12.5 | 35.0±0.50 | 12.0 | 12.5±0.20 | 10±0.30 | 23.2±0.20 | 33.20±0.20 | 3.0*1.8*2.5 | 2.5*1.8*2.0 | 95 |
U13 | 35.5±0.50 | 12.3 | 13.0±0.20 | 10±0.20 | 22.2±0.20 | 32.20±0.20 | 3.2*1.8*2.2 | 3.0*1.8*2.0 | 96.2 |
型號(hào)Type | 有效參數(shù) | AL值 AL(nH/N2) | |||
C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | HCP4 | |
U12 | 1.28 | 142.4 | 111.0 | 17311 | |
U12.5 | 1.2 | 147.0 | 122.0 | 19461 | |
U13 | 1.10 | 151.3 | 128.0 | 19300 | |
