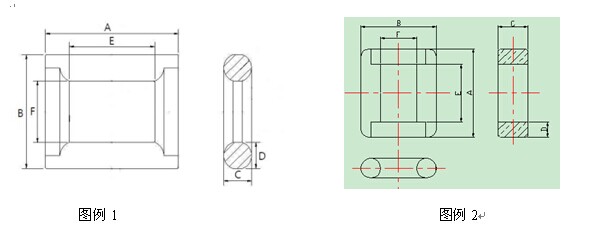

型號 Type | 圖例 | 尺寸 Dimension(mm) | 重量 | |||||
A | B | C | D | E | F | |||
SQ1515 | 1 | 15.2±0.4 | 15.2±0.4 | 5.1±0.30 | 4.7±0.30 | 11.0±0.4 | 5.90±0.4 | 3.65g |
SQ1614 | 1 | 16.5±0.5 | 14.0±0.3 | 5.0±0.20 | 4.5±0.20 | 12.5±0.5 | 5.00±0.3 | 3.60g |
SQ1916 | 1 | 19.0±0.5 | 16.0±0.5 | 5.5±0.20 | 5.0±0.15 | 14.0±0.5 | 6.00±0.5 | 5.10g |
SQ1918 | 2 | 19.0±0.4 | 18.3±0.4 | 5.5±0.20 | 2.5±0.20 | 14.0±0.3 | 8.22±0.3 | 5.50g |
SQ2018 | 2 | 20.4±0.4 | 18.3±0.5 | 5.5±0.20 | 3.2±0.20 | 14.0±0.3 | 8.22±0.3 | 6.20g |
SQ2318 | 1 | 22.8±0.4 | 18.1±0.4 | 5.0±0.30 | 4.5±0.25 | 14.8±0.4 | 9.10±0.4 | 5.90g |
SQ2418 | 1 | 24.0±0.3 | 17.5±0.4 | 6.0±0.20 | 5.5±0.25 | 20.0±0.3 | 6.50±0.4 | 7.60g |
SQ2521 | 1 | 24.7±0.5 | 21.3±0.5 | 5.2±0.20 | 4.9±0.20 | 15.9±0.4 | 11.50±0.4 | 7.50g |
SQ2820 | 1 | 28.0±0.4 | 20.0±0.4 | 6.5±0.20 | 6.0±0.25 | 22.0±0.4 | 8.00±0.4 | 10.50g |
SQ4319 | 1 | 43.0±0.8 | 19.2±0.4 | 6.8±0.25 | 6.1±0.25 | 33.0±0.6 | 7.00±0.4 | 17.50g |
型號 Type | 有效參數(shù) Effective parameter | AL值 AL（nH/N2） | ||||||
C1 (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | HC-5 | HC-7 | HC-10 | HC-12 | |
SQ1515 | 2.64 | 39.36 | 14.87 | 586.00 | 3000±30% | 3500±30% | ||
SQ1614 | 2.74 | 39.91 | 14.57 | 581.35 | 4200±30% | 5000±30% | ||
SQ1916 | 2.46 | 47.28 | 19.20 | 908.26 | 4600±30% | 5600±30% | ||
SQ1918 | 2.77 | 53.83 | 17.34 | 933.07 | 4500±30% | 5400±30% | ||
SQ2018 | 2.51 | 55.15 | 21.92 | 1209.20 | 3700±30% | 4500±30% | ||
SQ2318 | 2.63 | 58.59 | 22.34 | 1309.00 | 4600±30% | 5000±30% | ||
SQ2418 | 2.81 | 52.88 | 18.75 | 991.99 | 4250±30% | 4500±30% | ||
SQ2521 | 2.86 | 69.25 | 24.24 | 1678.36 | 4800±30% | 5300±30% | ||
SQ2820 | 2.43 | 67.57 | 27.78 | 1877.59 | 3700±30% | 4500±30% | ||
SQ4319 | 2.46 | 96.88 | 39.30 | 3808.04 | 3500±30% | 4500±30% | ||
